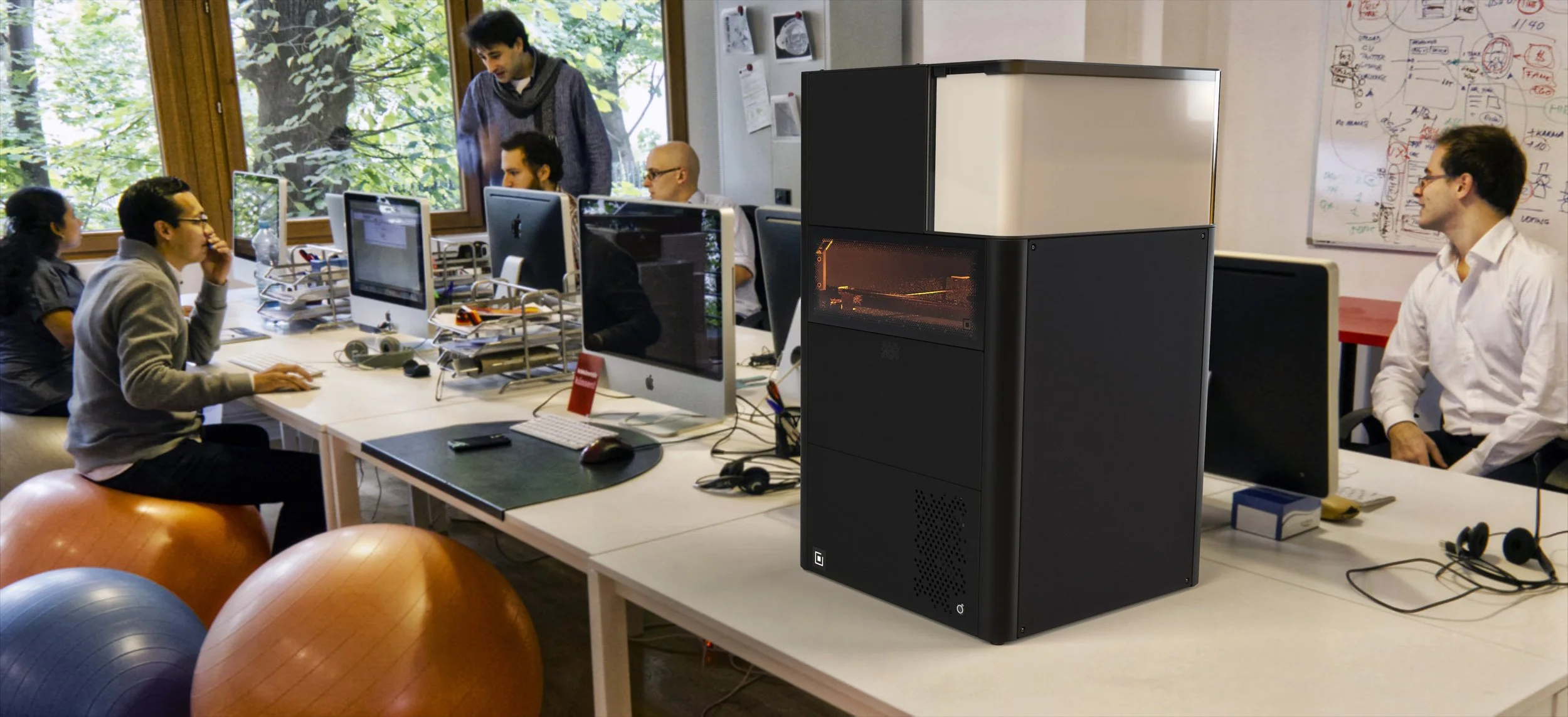

A group of people working in an office with desktop computers, with a large, black 3D printer or computer case in the foreground, and exercise balls on the floor.

ADI SLS

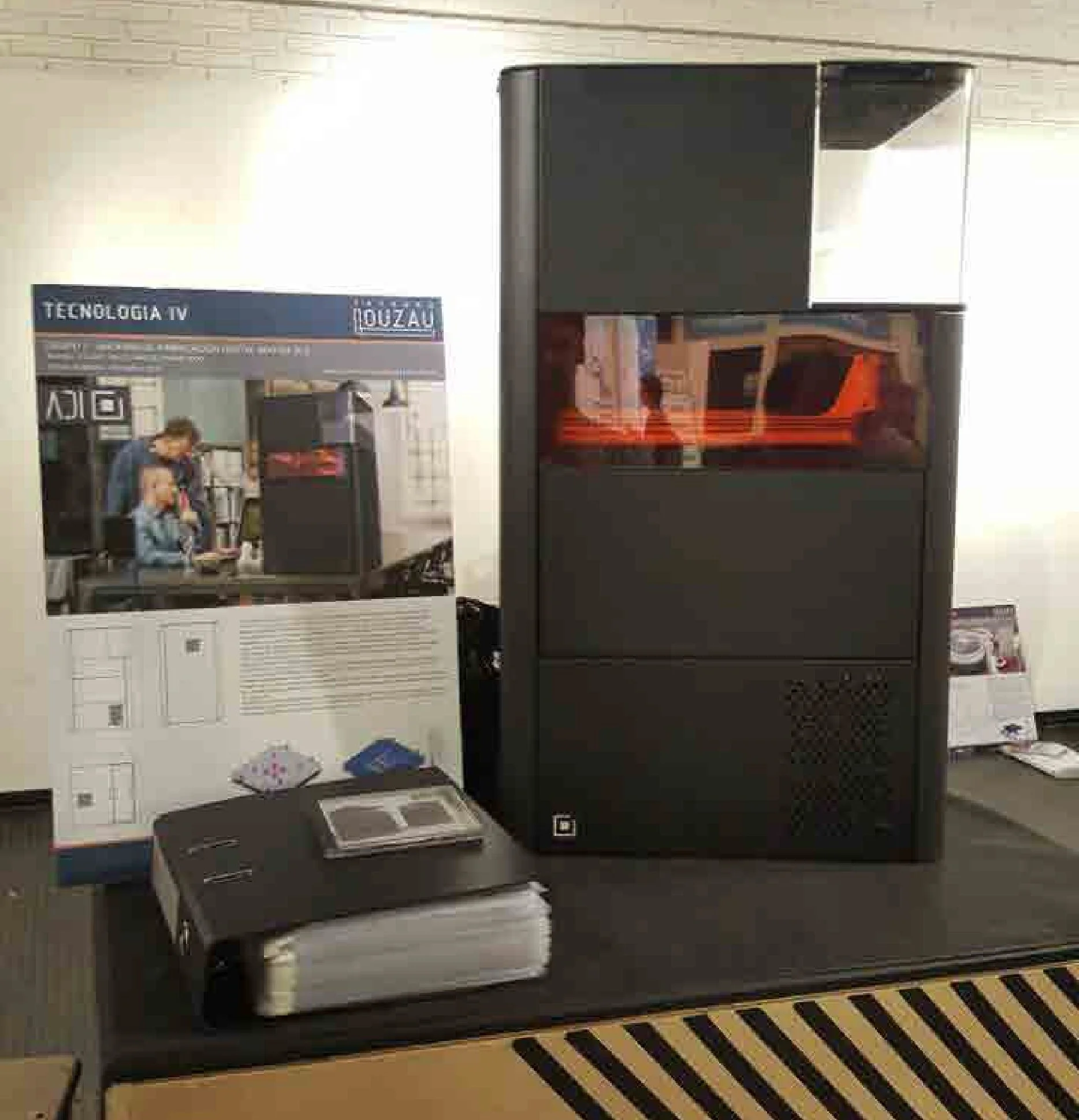

A 3D printer with an orange-lit interior on a table next to a brochure and a binder.

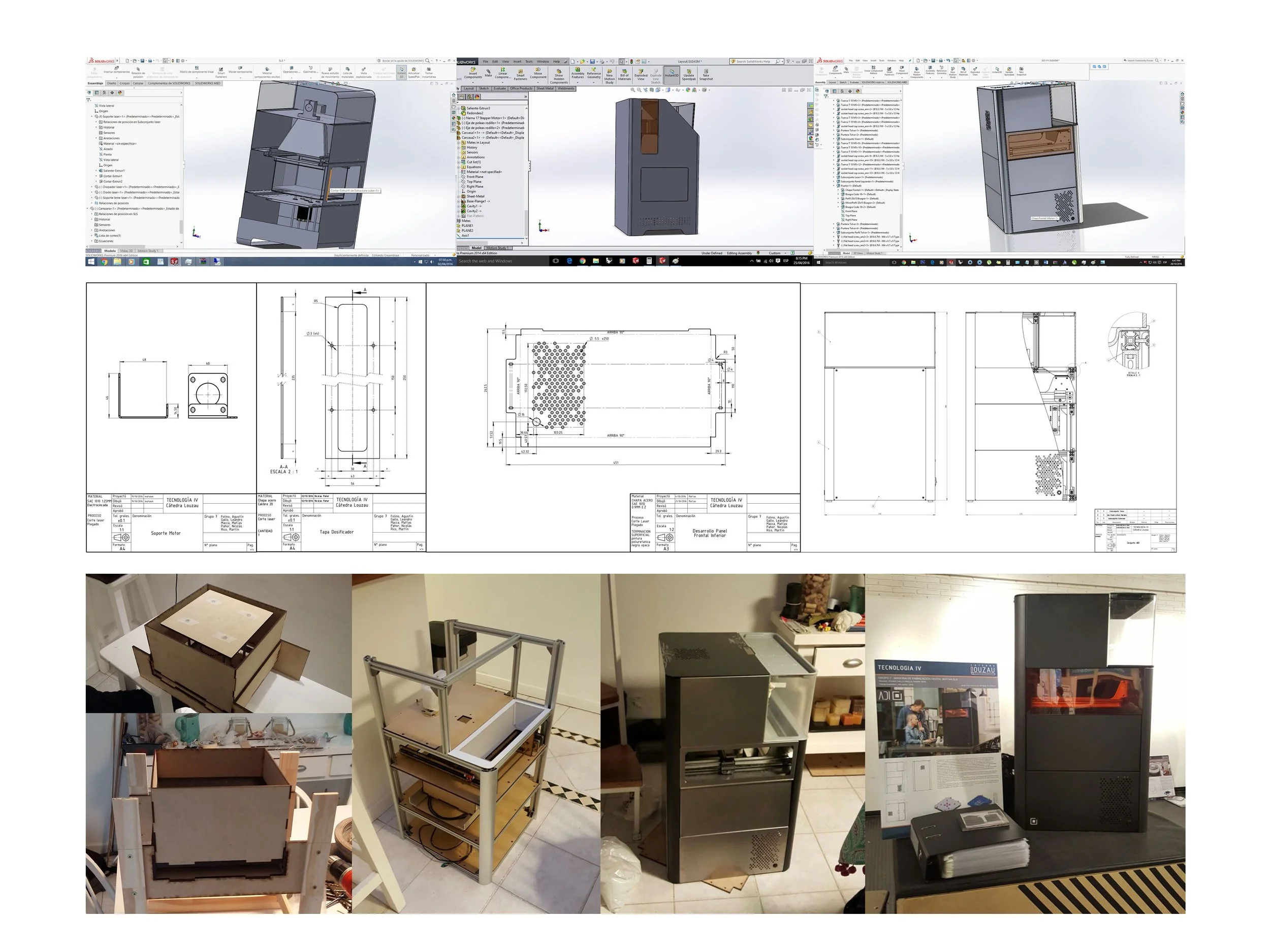

Collage of images showing CAD design sketches, 3D renderings, and assembly photos of a small rectangular electronic device or cabinet, with components, internal structure, and finished product.

ADI SLS 3D PRINTER

ADI is a University of Buenos Aires (FADU) Industrial Design Thesis Project (Cátedra Louzau) done by a team of 5 designers, Agustín Folino, Leandro Gallo, Matias Macca, Martín Rico and Nicolas Pahor. We did it considering it easy to assemble and dissasemble, also to make it affordable. Everything but the laser, Stepper motors and Galvanometer, was made in Buenos Aires. We did some initial tests with PET material but it needs further tuning and investment.
We continued working on it after the University, in a Small version with a CNC instead of a Galvanometer.

Several Iterations were done, in MDF material and Aluminium extruded Profiles.
The Mechanisms were created from scratch, using Motorbike gears for the bed lift, a stepper motor for the dosifier and for the roller as well with a belt mechanism.


A black 3D printer with a red transparent cover, situated on a table with a purple/pink lighting environment.

ADI 2.0

ADI 2.0 Is a smaller version with a CNC instead of a Galvo.
